Pedrollo CP130 Centrifugal Pump for Diesel & Water

Pedrollo CP130 Centrifugal Pump for Diesel & Water

Pedrollo CP Pump  48074

Pedrollo CP130 Centrifugal Pump for Diesel & Water

From £291.67 £350.00

In stock
FEATURES OF THE PEDROLLO CP130 CENTRIFUGAL TRANSFER PUMP:
  • Flow rate up to 160 L/min (59.6 m³/hr)
  • Dynamic head up to 58m
  • Steady performance even under varying conditions
  • Good suction capacities both at low and high delivery rates
  • Flat absorption curves at high delivery rates, preventing motor overloading even during prolonged use

From £291.67 £350.00

SKU: CP130
Clear

Description

PEDROLLO CP130 CENTRIFUGAL TRANSFER PUMP FOR DIESEL & WATER

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

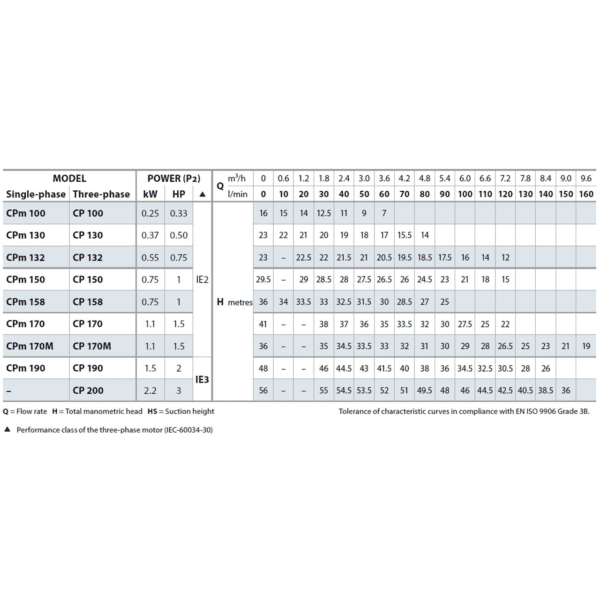

PERFORMANCE RANGE
  • Flow rate up to 160 L/min (59.6 m³/hr)
  • Dynamic head up to 58 m

SPECIFICATIONS
  • Temperature (min/max) -10 °C to +90 °C
  • Ambient temperature (max) +40 °C
  • Manometric suction lift up to 7m
  • Max. working pressure – 10 bar
  • Continuous service S1

STRUCTURAL CHARACTERISTICS
  • Cast iron PUMP BODY, with UNI ISO 228/1 gas threaded suction and delivery ports
  • AISI 304 stainless steel backplate, cast iron on more powerful models.
  • BRASS OR STAINLESS IMPELLER (depending on model – check datasheet), centrifugal radial flow type (technopolymer impeller on request).
  • AISI 316 stainless steel MOTOR SHAFT. (AISI 416 up to 0.75 kW).
  • Ceramic and graphite MECHANICAL SEAL (other options available)
  • MOTOR: pumps are coupled directly to an asynchronous, high efficiency PEDROLLO induction motor of suitable size, which is quiet running, closed and externally ventilated, suitable for continuous duty. INSULATION class F (B up to 0.75 kW).
  • A thermal cut-out device (motor protector) is incorporated in single phase motors.

Three phase motors require an adequate external motor protector connected in compliance with current standards

  • PROTECTION IP 44.
  • CONSTRUCTION AND SAFETY STANDARDS in compliance with EN 60 335 -1, CEI 61-150), EN 60034-1), (IEC 34-1, CEI 2-3)
  • REGISTERED MODEL

Additional information

Weight2 kg
