Gilbarco filter cannister – 10 micron Particulate Only

Gilbarco Filter Cannister

Gilbarco filter cannister – 10 micron Particulate Only

From £7.92 £9.50

In stock
0 out of 5
  • Particulate only filter
  • 50lpm
  • Suitable for Diesel
  • 10 Micron
  • 1″ UNF Nose for head (GFH3581-A)
  • Head 1″ ports

From £7.92 £9.50



The Gilbarco 10 micron cannister filter is a replacement filter cannister for the filtration of particulate from fuel systems and should be changed on a regular basis to maintain your system to be free of particulate and to also keep the flow rate through the system to optimal performance, as a blocked filter will cause the system to slow down and in extreme circumstances stop altogether potentially cause pressure build up and permeant damage to pump parts.

Filter 1″ UNF

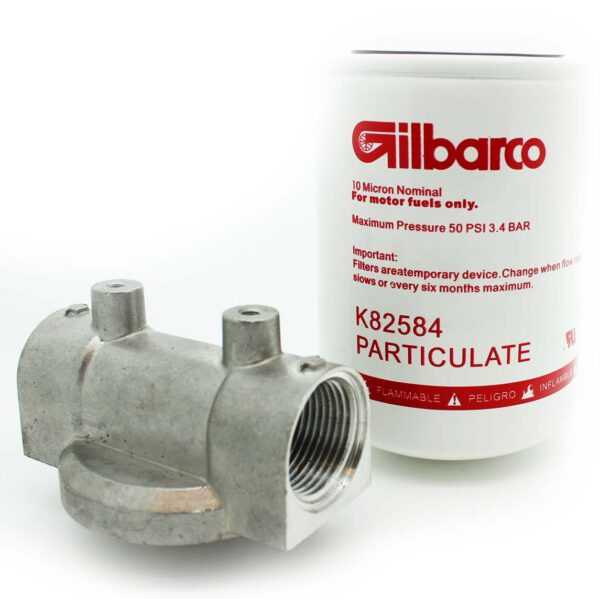

Head 1″ BSP ports with 1″ UNF filter connection


TIP: Do ensure you select the correct head and element according to the flow type/ rate/ requirement of your particular system (i.e. Gravity/ up to 50 lpm/ up to 67 lpm/ up to 150 lpm/ paticulate filtration only/ particulate and water filtration/ etc).

TIP: It is often a good idea to purchase an additional filter to keep on the shelf ready to replace a spent element.  This is of particular importance when using an element containing Hydrosorb powder to remove water because this swells up over time and starts to significantly slow the delivery rate).

This Pumped Filter System, up to 50 lpm, comprises a ‘head’ that is permanently fitted inline with replaceable ‘elements’ that are removed and disposed of once spent (similar to a car filter).  The ‘head’ and the ‘filter elements’ are sold separately.

This Gilbarco 10 micron filter cannister is for particulate filtration only.

We also supply other brands of fuel filters and cannisters here – Fuel filters

Additional information

Weight.55 kg

Gilbarco 10 micron filter Element, Not Required

Optional Head

1" port filter head with 1" UNF Nose for GFH3580 Gilbarco Filter, Not Required
