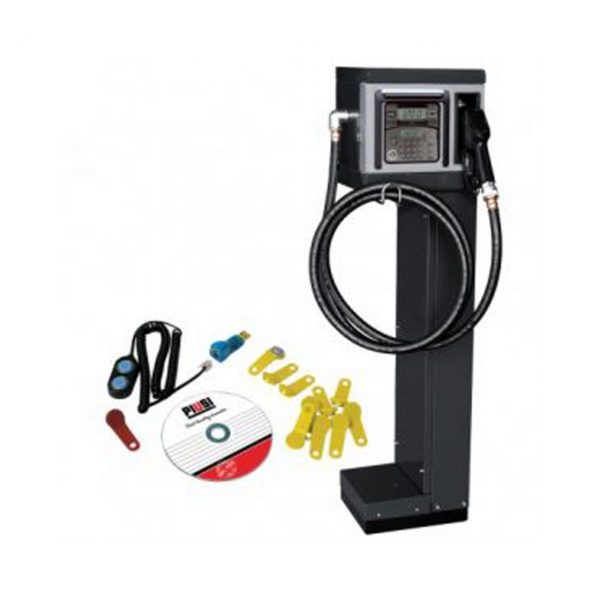

Piusi Cube 70MC, Fuel Management Pump Unit

Cube 70 MC fuel monitoring system

Piusi Cube 70MC, Fuel Management Pump Unit

From £1,892.73 £2,271.28

In stock
FEATURES OF THE PIUSI CUBE 70MC:
  • All in one equipment
  • Multi user management
  • Compatible with Self Service Management 2018 software
  • Available in 12v/24v/230v

From £1,892.73 £2,271.28

SKU: P8-59400B
Clear

Description

PIUSI CUBE 70 MC FUEL MANAGEMENT SYSTEM


Cube MC is a diesel dispenser specifically for non-commercial use. The uniqueness of this diesel dispenser is its versatility, which makes it suitable for different applications. In fact, it is possible to apply CUBE MC directly on tanks, on the wall, on cisterns, on drums or apply it on its special pedestal.

Another peculiarity of this diesel dispenser is its versatility in being able to adapt to different sectors: agriculture, automotive, logistics, construction and industrial sectors.


PRACTICALITY AND SIMPLICITY

The Cube MC fuel dispenser is equipped with a self-priming vane pump with bypass that ensures high performance. The CUBE MC Diesel dispenser is installed on anti-vibration mounts for better comfort and practicality in use, while the mechanical seal and the thermal protection against overheating of the induction motor make the product reliable and safe. The nozzle supplied is automatic with a swivel connection and the nozzle holder has a pump start/stop lever. The installation of the mesh filter on the suction side ensures a long life of the pump, because no foreign matter ends up in the rotor, causing a blockage and consequent breakage.


FUEL CONSUMPTION MONITORING

The Cube MC Diesel dispenser is equipped with oval gear flow meter and an electronic control unit for the management of multi-user dispensing operations. The local memory collects the last 255 dispensing operations and thanks to the PC interface, it is possible to export and organize the data. For total control over the use of the fuel dispenser, you can enter the vehicle code, mileage, date and time of dispensing. In addition, the magnetic keys (iButton keys) allow the identification of users for a total tracking of consumption.

On request it is possible to ask for the Self Service Management 2018 software in order to be able to make detailed printouts of the dispensing operations summed up by user.

SOFTWARE KITS

Option 1 Download software – Kit includes

  • Self Service 2018 software download license key
  • 10 yellow user keys
  • 1 red managers key
  • USB keyreader

OPTION 2 USB software – Kit includes

  • Self Service 2018 on USB drive
  • 10 yellow user keys
  • 1 red managers key
  • USB keyreader

Additional information

Weight2 kg
Features

Controls up to 50 or 120 users (depending on model)
Limits pump access to users via pin code or key (if purchased)
Records transaction data such as user, date, time & QTY
Facility to record vehicle reg number & odometer readings
Pump start/stop & pre-set dispense features
Can be connected to an Ocio gauge
Local memory of 255 transactions

Flow meter

K600

Nozzle

Automatic nozzle and nozzle holster

Hose

4m x 1" delivery hose

Voltage

Available in 12v/24v/230v

Flow Rate

36-60lpm, 61-75lpm

Fluid Type

Diesel, HVO

Product Type

Pump
