FEATURES OF THE PEDROLLO TOP FLOOR SUBMERSIBLE PUMP:PEDROLLO
  • Flow rate up to 220 L/min (13.2 m³/hr)
  • Dynamic head up to 9 m
  • Maximum operating depth 3m below water level
  • Fluid maximum temperature + 40 °C

£294.85 £353.82

SKU: P3401

Description

PEDROLLO TOP FLOOR SUBMERSIBLE PUMP

TOP FLOOR pumps are suitable for lifting clear or slightly dirty water not containing abrasive substances. These pumps have been designed for easy use and are extremely reliable even when subjected to continuous use, since the motor is fully cooled and has an ample reserve of power plus a double seal system. The motor is easily removed making maintenance and repair simple.

THANKS TO THEIR CAPACITY TO DRAIN WATER DOWN TO 2mm THESE PUMPS ARE SUITABLE FOR DOMESTIC EMERGENCY USE FOR SMALL FLOODED AREAS AND FOR ALL THOSE APPLICATIONS WHERE MAXIMUM DRAINAGE POTENTIAL IS REQUIRED.

Designed for emergency situations to drain small flooded areas to 2mm from the floor.


PERFORMANCE RANGE
  • Flow rate up to 220 L/min (13.2 m³/hr)
  • Dynamic head up to 9 m

SPECIFICATIONS
  • Maximum operating depth 3m below water level
  • Fluid maximum temperature + 40 °C
  • Maximum passage for suspended solids Ø 5mm
  • Maximum emptying level 2mm from the bottom

Design, technology and innovative materials are the main features behind the new TOP FLOOR pumps, designed to be easy to use and extremely reliable.

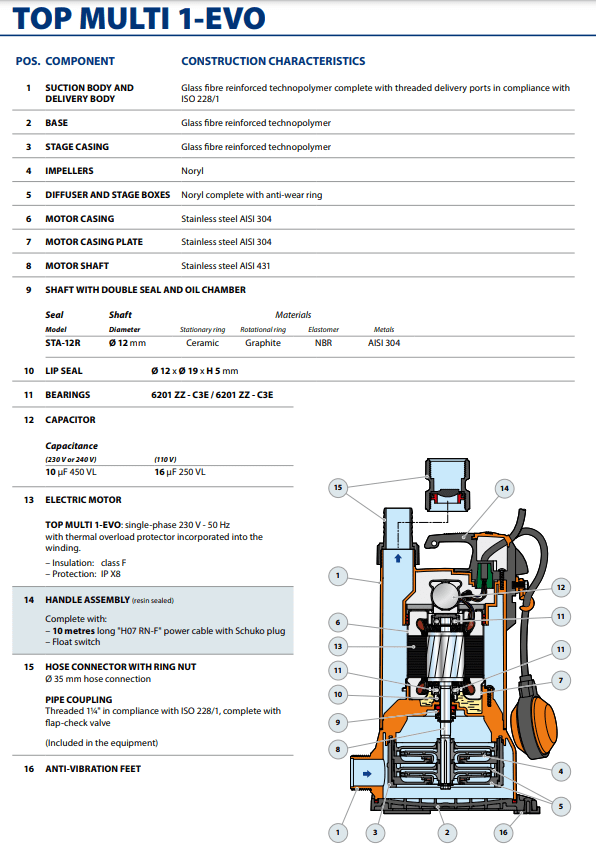

STRUCTURAL CHARACTERISTICS
  • DELIVERY BODY made from fibreglass reinforced techno-polymer, particularly resistant to mechanical stress, knocks and corrosion, fitted with UNI ISO 228/1 1inch or 1¼ inch gas threaded vertical delivery port.
  • SUCTION STRAINER made from fibreglass-reinforced techno-polymer, providing the support base for the pump.
  • Techno-polymer HOSE CONNECTION with screw fitting
  • General Electric Noryl techno-polymer open IMPELLER
  • AISI 416 stainless steel MOTOR SHAFT
  • DOUBLE SEAL SYSTEM carbon / alumina mechanical seal on the pump side, and lip seal on the motor side. A barrier oil chamber of bio-degradable oil lubricates and cools the sealing surfaces in the absence of water.
  • Sealed induction MOTOR suitable for continuous duty with built-in thermal cutout device (motor protector). INSULATION class F (provides the motor with a considerable overload tolerance and substantially increases the service life of the motor itself). Motor cooling is assured by the pumped liquid.
  • PROTECTION IP 68.
  • UK pumps supplied with 10 metres of cable. Other alternatives on request.
  • CONSTRUCTION AND SAFETY STANDARDS in compliance with EN 60 335-1 (IEC 335-1, CEI 61-150) EN 60034-1 (IEC 34-1, CEI 2-3).

Additional information

Weight2 kg
