GPI M-180S-MU/AU 12v Gear Pump Kit – 69lpm

M 180s Auto Nozzle GPI gear pump

GPI M-180S-MU/AU 12v Gear Pump Kit – 69lpm

From £643.73 £772.48

In stock
0 out of 5
FEATURES OF THE M180-S 12V, 69LPM GEAR PUMP KIT:
  • Less friction, less wear – longer life
  • Unique spin collar mount – easy install & pump orientation
  • 30-minute duty cycle

*PLEASE NOTE:* GPI/GPro pump prices are inclusive of shipping from the USA and supplied ex-works from our factory with an average 2 week lead time.

From £643.73 £772.48

SKU: N/A
Clear
View basket

Description

M-180S-MU/AU 12V 69LPM GPI GEAR PUMP KIT – *UL LISTED


BENEFITS OF GPI GEAR PUMPS:
  • Easy to install – Power cord is pre-installed
  • Field serviceable – 10 minutes to change gears or switch
  • Die-cast aluminum and powder coated – 30% lighter and won’t rust
  • Gear pumps last 3x longer than vane pumps
  • Extremely low warranty rate

The GPI M-180S fuel transfer pump features a rotary gear design and is made from durable and lightweight cast aluminum. The 12-VDC motor delivers flow rates up to 69lpm. The M-180S is a GPI best-seller, providing longer run times and reliable performance year over year. This series is the pump of choice for agricultural, automotive, and construction applications using gasoline, diesel fuel, and kerosene. The M-180S comes with a manual/automatic leaded nozzle, fuel hose, power cord & adjustable suction pipe.


MAIN FEATURES OF THE KIT:
  • More operating hours mean longer pump life and greater value.
  • A convenient spin collar provides for easy installation and versatile pump mounting.
  • A lightweight aluminum body provides corrosion resistance and reduces tank stress.
  • A lockable nozzle holder protects your investment and deters theft.
  • Designed for permanent mounting on vented storage tanks.
  • Low profile design.
  • UL Listed Motor and CSA Certified & 2-year warranty.
  • ENGINEERED TO LAST: The rotary gear pump is designed with fewer moving parts, which means less friction and wear on its components. Thus, this rotary gear pump will have fewer needed repairs and longer life than a rotary vane pump. More operating hours mean longer pump life and greater value. When you need reliable performance, GPI’s gear pumps are over-engineered to deliver.

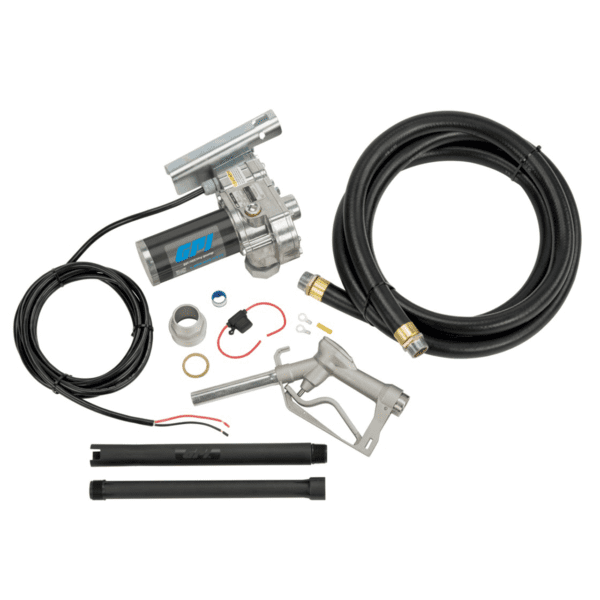

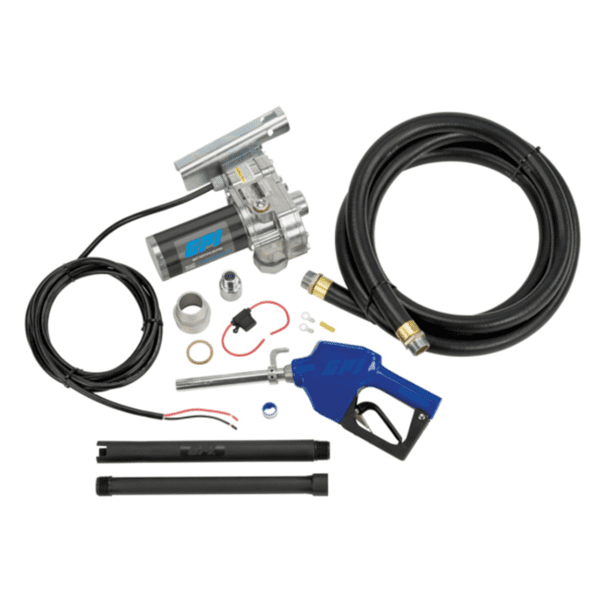

WHAT’S IN THE BOX:
  • Includes the M-180S 18 GPM pump
  • Automatic or Manual unleaded nozzle
  • dispensing hose w/static wire
  • factory-installed power cord
  • telescoping suction pipe
  • tank adapter
  • fuse assembly
  • owners manual

*UL LISTED PUMPSCulus+listed+motor Class+1+div+2

UL Listed means that the product has been tested by UL to nationally recognized safety and sustainability standards. Additionally, it has been found to be free from a reasonably foreseeable risk of fire, electric shock in a Division 2 environment. All pumps marked as UL LISTED come with UL certification.

Additional information

Weight2 kg
Flow Rate

18 GPM (69 L/min)

Pump Type

Rotary Gear

Current Draw

20 AMPS

Motor

2000 RPM, 1/4 HP, UL LISTED TO US AND CANADIAN STANDARDS

Operating Pressure

15 PSI (1.03 BAR) – STANDARD PRESSURE

Operating Temperature

-20°F TO 125°F (-29°C TO 52°C)

Connections

Inlet/Outlet – 1 IN. Female NPT

Dispensing Hose

Buna-N electrically conductive, 12 FT. (3.7m) x 1 IN.

Suction Pipe

Polypropylene, Telescoping 15 IN. to 40 IN. x 1" NPT

Power Cord

18 FT. (5.5m), 12/2 AWG, Factory Installed
