Lever Fire Valves

Description

LEVER FIRE VALVE KITS

Lever Fire Valves work by tensioning the stainless cord so the valve lever is held open, the stainless cord is joined in the area of the boiler by a Eutectic Soldered Link, this link melts in the event of a fire, and the valve closes.

Lever Fire Valves are an economical and space-saving alternative to Drop-Weight / Free-Fall Fire Valves, and the same manual or electronic actuation switches can be used in the control cable.

Good quality Lever Fire Valve Kits, available in 3/8″, 1/2″, and 3/4″ BSP Female Threaded.

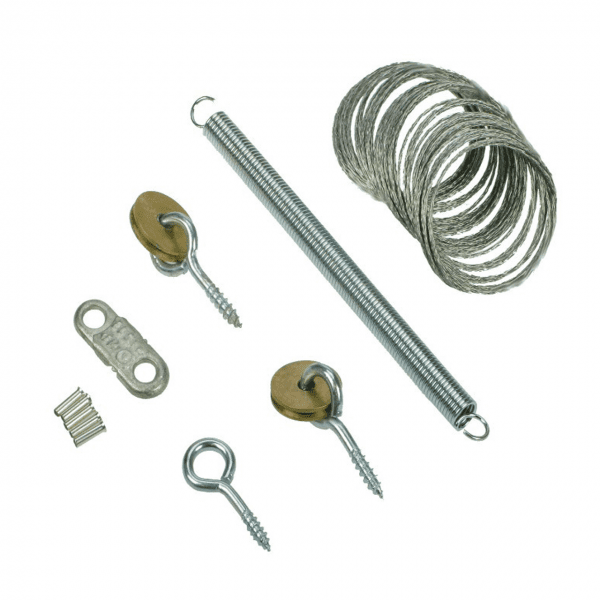

Each kit includes:

• 1 Lever Fire Valve Body
• 9M of Stainless Steel Wire
• 2 Pulleys
• 1 Eutectic Soldered Link
• 1 Spring
• 1 Anchor
• 6 Ferrules
