Inpro OUF 88 Oil Lifter – 3L Reservoir

OUF 88 Oil Lift Pump - 3L

Inpro OUF 88 Oil Lifter – 3L Reservoir

From £829.50 £995.40

In stock
FEATURES OF THE INPRO OUF 88 3L OIL LIFTER:
  • ‘Auto’ fill on initial priming of the unit. PCB surge protector
  • Diagnostic flashing lights show if an alarm condition occurs
  • Voltage: 230V
  • Inlet & outlet connection ⅜” BSP
  • Dims 335mm H x 240mm W x 130mm D
  • Comes with Leak Detection Tray
  • If external installation required unit needs to be housed in a weatherproof enclosure
  • Fire Valve recommended with an oil lifter installation.

From £829.50 £995.40

SKU: OL-3L
Clear

Description

INPRO OUF 88 OIL LIFTER – 3L RESEVOIR

OL-3L – OUF 88 Oil Lift Pump – 3L used to ensure a head of oil above the burner to provide a gravity feed supply. Inbuilt pump and micro switches call for oil when the reservoir gets low and switches itself off when full.


Maximum lift is 8 metres and the maximum distance to the oil tanks is 100 metres. Oil lifters can also be fitted with a leak detection tray, this will isolate the oil pump from emptying and refilling the reservoir if it detects a leak.


Oil Lifters can be fitted inside the building as well as outside. If the unit is being fitted inside it should be in a fire walled, ventilated area. If if is being fitted outside the building it needs to be in a weatherproof box as it is not IP rated.

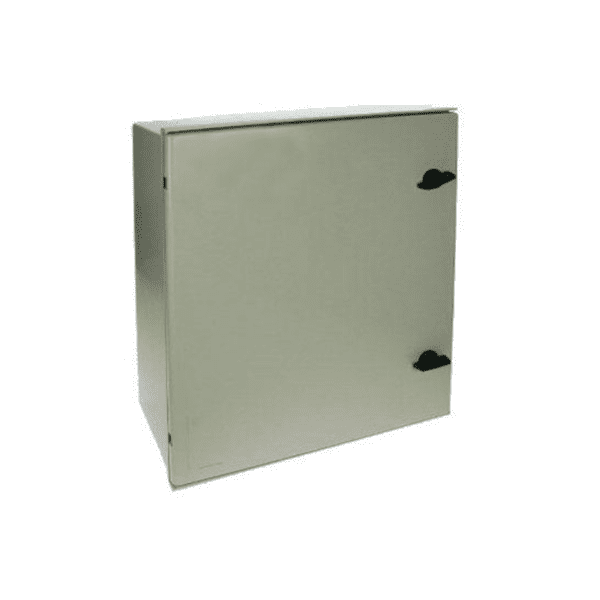

We do supply weatherproof enclosures see here

You can also select the Oil lifter kit, which includes a 3L oil lifter with leak detection drip tray, fire valve and all pre fitted into a weatherproof box. The cost includes some shipping cost in price due to it being shipped on a pallet.

OUF 88 Oil Lift Pump 3L Reservoir

The OUF 88 Oil Lift Pump – 3L  range of oil lifters/oil lift pumps satisfies most domestic requirements up to 15L/hr depending on the vertical suction lift with a stainless steel float fitted as standard. The unit functions by monitoring the oil level when the level drops to a determined point, the unit tops up to the full level, and the cycle repeats. An LED panel displays correct operation and alerts to malfunction.

Reservoir sizes (in this case, 3.5 litre) are only subject to the amount of oil required in the event of a power cut. For a larger reservoir, take a look at our 12L Reservoir Oil Lifter .

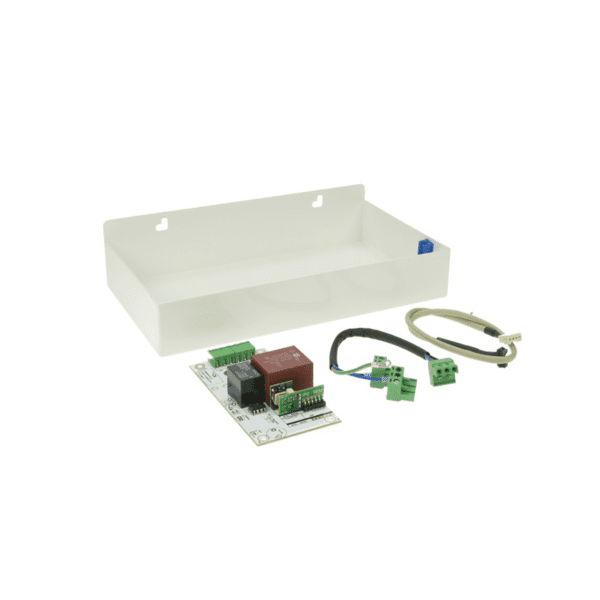

Now comes complete with an infrared leak detection tray, to act as safety feature to ensure if the pump develops a leak a signal is sent to the switch to stop refilling the reservoir.

OUF 88 oil lifter features:

  • ‘Auto’ fill on initial priming of the unit. PCB surge protector.
  • Diagnostic flashing lights show if an alarm condition occurs.
  • 230V.
  • Inlet & outlet connection ⅜” BSP.
  • Dims 335mm H x 240mm W x 130mm D.
  • C/W Leak detector & drip tray.
  • If external installation required unit needs to be housed in a weatherproof enclosure. See EASI B installation box.

If you need a weatherproof box for your oil lifter please see here – Oil lifter weatherproof box

Additional information

Weight2 kg
PUMP TYPE

Suction Solenoid Pump

LIFTING HEIGHT (MAX)

8m Vertical (8mm I.D Tube)

MAX. HORIZONTAL DISTANCE

100m Horizontal (8mm I.D Tube)

OUTLET FLOW RATING (8mm I.D Tube)

8lph at 8m Vertical & 25m Horizontal

INLET CONNECTION

3/8” F BSP

OUTLET CONNECTION

3/8” F BSP

OVERFLOW OUTLET CONNECTION

1/2” F BSP

POWER SUPPLY

AC 230v / 50Hz

POWER CONSUMPTION

50W

RESEVOIR TOTAL CAPACITY

3.5 Litre (Maxi – 12 Litres)

DIMENSIONS

240 x 130 x 335mm (Maxi – 350 x 250 x 345mm)

WEIGHT

3kg (Maxi – 4kg)
