GPI EZ-8 12v Gear Pump Kit
FEATURES OF THE EZ-8 12V, 30LPM PORTABLE GEAR PUMP KIT:
- Gas station equivalent flow rate
- Self-priming, low maintenance design
- Thermal overload protection
*PLEASE NOTE:* GPI/GPro pump prices are inclusive of shipping from USA and supplied ex works from our factory with an average 2 week lead time.
From £315.93 £379.12
- Description
- Additional information
- Technical Downloads
Description
GPI EZ-8 12V, 30LPM GEAR PUMP KIT – *UL LISTED
The GPI EZ-8 12v Gear Pump is UL which is similar to ATEX please see explanation below.
UL or cUL instruments have been certified by Underwrites Laboratories for use in the US and Canada with ratings given for potentially explosive atmospheres, while ATEX Certification is a certification of equipment intended for use in potentially explosive atmospheres in the European Union.
BENEFITS OF GPI GEAR PUMPS:
- Easy to install – Power cord is pre installed
- Field serviceable – 10 minutes to change gears or switch
- Die cast aluminium and powder coated – 30% lighter and won’t rust
- Gear pumps last 3x longer than vane pumps
- Extremely low warranty rate
GPI EZ-8 Fuel Transfer Pump features a rotary gear design and is made from durable, lightweight corrosion-resistant diecast aluminium. The 12-VDC motor delivers gas station equivalent flow rates (up to 8 GPM) for gasoline, diesel fuel, ethanol blends, and kerosene. The EZ-8 is ideal for on the go fuelling for agricultural and automotive applications and is the pump of choice for refuelling recreational vehicles. The EZ-8 comes with a manual unleaded nozzle, fuel hose, power cord and adjustable suction pipe. Motor U.L. Listed to U.S. and Canadian Standards.
MAIN FEATURES OF THE KIT:
- Gas station equivalent flowrate (up to 8 GPM). Self-priming low maintenance design
- Extremely lightweight design for use on small tanks and barrels
- Easy installation and direct tank mounting
- Aluminium body provides corrosion resistance and reduces tank stress
- For use with gasoline, diesel fuel, ethanol blends, and kerosene
- Thermal overload protection extends pump life
- Aluminium body provides corrosion resistance and reduces tank stress
- Motor U.L. listed to U.S. and Canadian standards and 2-year warranty

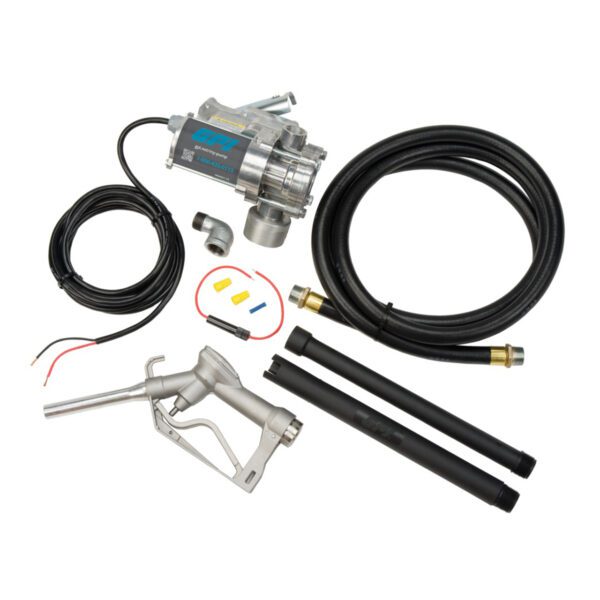

WHAT’S IN THE BOX
- Includes the EZ-8 8 GPM pump
- Manual unleaded nozzle
- Dispensing hose w/static wire
- Factory-installed power cord
- Telescoping suction pipe
- Street elbow
- Tank adapter
- Fuse assembly
- Owners manual
*UL LISTED PUMPS
UL Listed means that the product has been tested by UL to nationally recognized safety and sustainability standards. Additionally, it has been found to be free from a reasonably foreseeable risk of fire, electric shock in a Division 2 environment. All pumps marked as UL LISTED come with UL certification.
We also offer a wide range of GPI products for refuelling – GPI Refuelling products
Additional information
| Weight | 2 kg |
|---|---|
| Flow Rate | 30lpm / 8gpm |
| Pump Type | Rotary Gear |
| Operating Pressure | 15 PSI (103 BAR) – NORMAL PRESSURE |
| Operating Temperature | -22°F TO 131°F (-30°C TO 55°C) |
| Approval | UL Listed |
| Connections | INLET: 1 IN. Female NPT / OUTLET: 3/4 IN. Female NPT |
| Dispensing Hose | Buna-N electrically conductive, 10 FT. (3.05m) x 5/8 IN. |
| Suction Pipe | Polypropylene, Telescoping 15 IN. to 40 IN. x 1" NPT |
| Power Cord | 15 FT.(4.6m), 14/2 AWG, Factory Installed |
| Warranty | 2 Years |
| Flow Rate | 0-35lpm |
| Fluid Type | Diesel, Kerosene / Heating Oil, Petrol |
| Product Type | Pump Kit |
